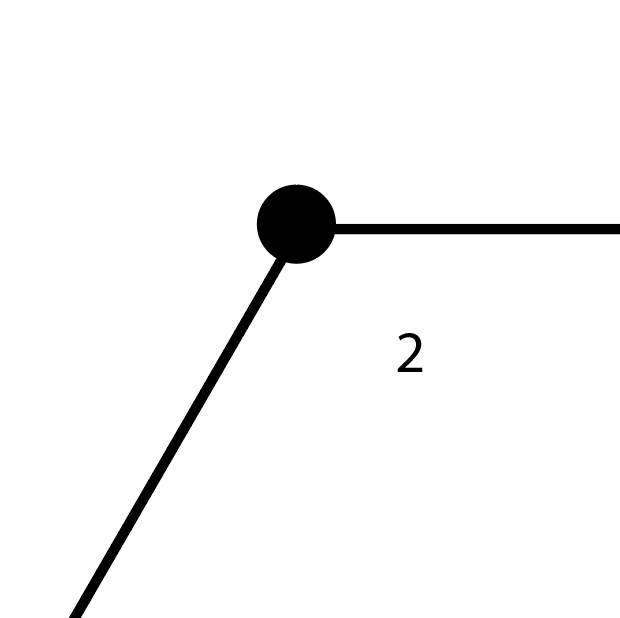

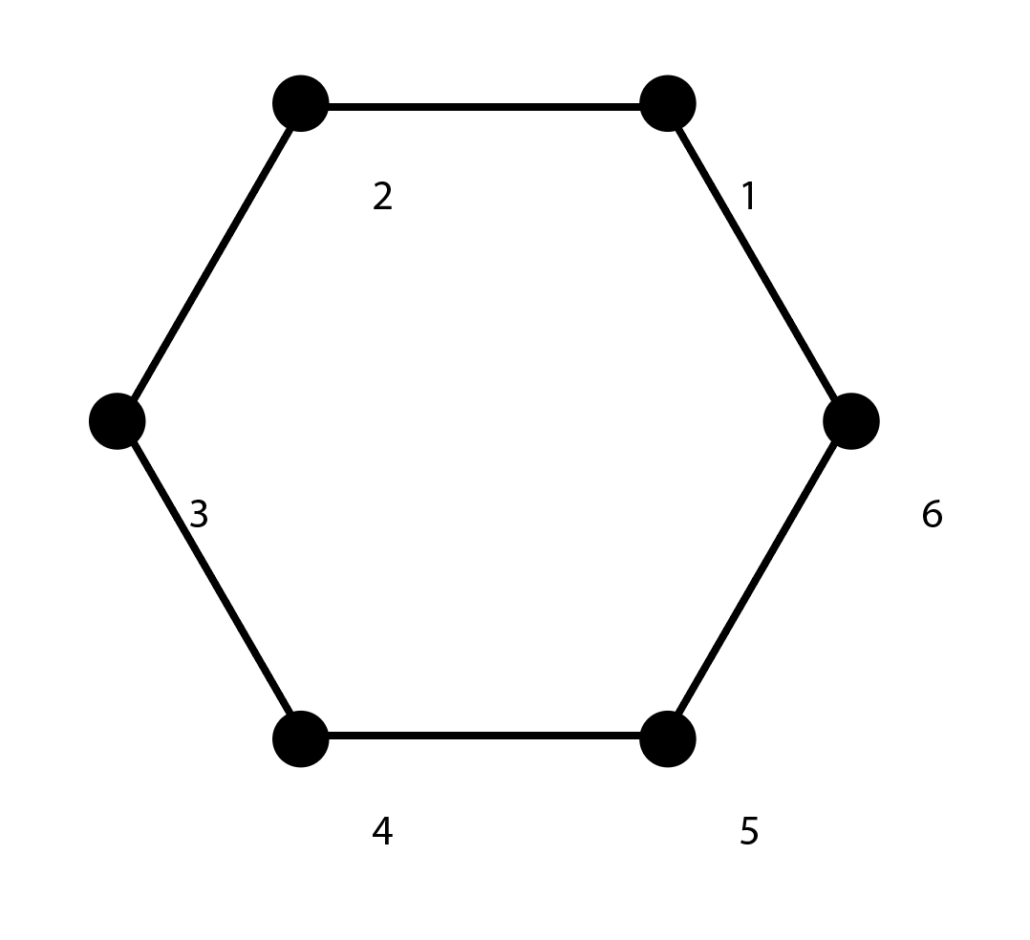

Numerates the selected points in the document by placing colored circle markers and corresponding number labels next to each point. It provides a dialog to adjust the marker diameter, font size, and positional offsets relative to the point.
Usage: With an Illustrator document open, select one or more points (by selecting anchors on paths) and run the script. Use the dialog to adjust numbering start value, marker size, margins, etc., then execute to label the points.
JavaScript
/*
NumeratesPoints.jsx for Adobe Illustrator
Description: Numerates selected points and marks them with colored circles
Date: December, 2022
Author: Sergey Osokin, email: hi@sergosokin.ru
Installation: https://github.com/creold/illustrator-scripts#how-to-run-scripts
Release notes:
0.1 Initial version
0.2 Disabled Preview only for Illustrator v.24.3, because Illustrator crashes
0.3 Added more units (yards, meters, etc.) support if the document is saved
0.3.1 Removed RU localization due to Adobe API bug
0.3.2 Radius replaced by diameter. Added size correction in large canvas mode
0.3.3 Added new units API for CC 2023 v27.1.1
Donate (optional):
If you find this script helpful, you can buy me a coffee
- via Buymeacoffee: https://www.buymeacoffee.com/aiscripts
- via Donatty https://donatty.com/sergosokin
- via DonatePay https://new.donatepay.ru/en/@osokin
- via YooMoney https://yoomoney.ru/to/410011149615582
NOTICE:
Tested with Adobe Illustrator CC 2018-2023 (Mac), 2023 (Win).
This script is provided "as is" without warranty of any kind.
Free to use, not for sale
Released under the MIT license
http://opensource.org/licenses/mit-license.php
Check my other scripts: https://github.com/creold
*/
//@target illustrator
app.preferences.setBooleanPreference('ShowExternalJSXWarning', false); // Fix drag and drop a .jsx file
function main() {
var SCRIPT = {
name: 'Numerates Points',
version: 'v.0.3.3'
},
CFG = {
aiVers: app.version.slice(0, 4),
units: getUnits(), // Active document units
diameter: 8, // Marker diameter
font: 6, // Font size, pt
left: 10, // Margin left
top: -10, // Margin top
start: 1, // Start number
isPreview: true,
markerName: 'Points_Markers',
numName: 'Points_Numbers',
uiField: [0, 0, 50, 30],
uiTitle: [0, 0, 130, 30],
uiOpacity: .97 // UI window opacity. Range 0-1
},
SETTINGS = {
name: SCRIPT.name.replace(/\s/g, '_') + '_data.json',
folder: Folder.myDocuments + '/Adobe Scripts/'
},
LANG = {
errDoc: 'Error\nOpen a document and try again',
errSel: 'Error\nPlease select atleast one object',
number: 'Start number',
diameter: 'Marker diameter',
font: 'Font size, pt',
left: 'Left margin',
top: 'Top margin',
cancel: 'Cancel',
ok: 'Ok',
preview: 'Preview',
};
if (!documents.length) {
alert(LANG.errDoc);
return;
}
if (!selection.length || selection.typename == 'TextRange') {
alert(LANG.errSel);
return;
}
var doc = activeDocument,
selPaths = [],
selPoints = [],
isUndo = false,
tempPath; // For fix Preview bug
// Scale factor for Large Canvas mode
CFG.sf = doc.scaleFactor ? doc.scaleFactor : 1;
getPaths(selection, selPaths);
getPoints(selPaths, selPoints);

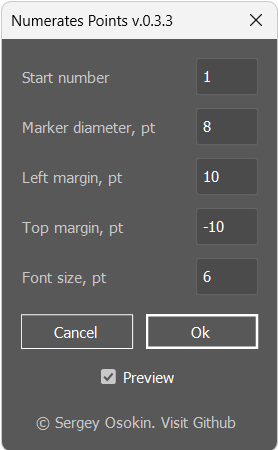

// INTERFACE
var win = new Window('dialog', SCRIPT.name + ' ' + SCRIPT.version);
win.orientation = 'column';
win.alignChildren = ['fill', 'center'];
win.opacity = CFG.uiOpacity;
// Value fields
var fieldGroup = win.add('group');
fieldGroup.orientation = 'row';
fieldGroup.alignChildren = ['fill', 'center'];
var grpTitle = fieldGroup.add('group');
grpTitle.orientation = 'column';
var numTitle = grpTitle.add('statictext', CFG.uiTitle, LANG.number);
var radTitle = grpTitle.add('statictext', CFG.uiTitle, LANG.diameter + ', ' + CFG.units);
var leftTitle = grpTitle.add('statictext', CFG.uiTitle, LANG.left + ', ' + CFG.units);
var topTitle = grpTitle.add('statictext', CFG.uiTitle, LANG.top + ', ' + CFG.units);
var fontTitle = grpTitle.add('statictext', CFG.uiTitle, LANG.font);
var grpInput = fieldGroup.add('group');
grpInput.orientation = 'column';
var numVal = grpInput.add('edittext', CFG.uiField, CFG.start);
var diaVal = grpInput.add('edittext', CFG.uiField, CFG.diameter);
var leftVal = grpInput.add('edittext', CFG.uiField, CFG.left);
var topVal = grpInput.add('edittext', CFG.uiField, CFG.top);
var fontVal = grpInput.add('edittext', CFG.uiField, CFG.font);
// Buttons
var btns = win.add('group');
btns.orientation = 'row';
btns.alignChildren = ['fill','center'];
var cancel = btns.add('button', undefined, LANG.cancel, { name: 'cancel' });
var ok = btns.add('button', undefined, LANG.ok, { name: 'ok' });
var grpPreview = win.add('group');
grpPreview.orientation = 'row';
grpPreview.alignChildren = ['center','center'];
var isPreview = grpPreview.add('checkbox', undefined, LANG.preview);
// It's sad. Illustrator 2020 24.3 crashes when we run app.undo() to the textFrame
// The Preview will not be available on this version of Adobe Illustrator
if (CFG.aiVers == '24.3') {
isPreview.enabled = false;
} else {
isPreview.value = CFG.isPreview;
}
var copyright = win.add('statictext', undefined, '\u00A9 Sergey Osokin. Visit Github');
copyright.justify = 'center';
copyright.addEventListener('mousedown', function () {
openURL('https://github.com/creold/');
});
loadSettings();
if (isPreview.value) previewStart();
// Event listener for isPreview
isPreview.onClick = previewStart;
numVal.onChanging = diaVal.onChanging = fontVal.onChanging = previewStart;
leftVal.onChanging = topVal.onChanging = previewStart;
numVal.onChange = function () { this.text = strToNum(this.text, CFG.start); }
leftVal.onChange = function () { this.text = strToNum(this.text, CFG.left); }
topVal.onChange = function () { this.text = strToNum(this.text, CFG.top); }
diaVal.onChange = function () {
this.text = strToNum(this.text, CFG.diameter);
if (this.text * 1 <= 0) this.text = CFG.diameter;
}
fontVal.onChange = function () {
this.text = strToNum(this.text, CFG.font);
if (this.text * 1 <= 0) this.text = CFG.font;
}
// Use Up / Down arrow keys (+ Shift) for change value
for (var i = 0; i < grpInput.children.length; i++) {
shiftInputNumValue(grpInput.children[i]);
}
cancel.onClick = win.close;
win.onClose = function () {
try {
if (isUndo) {
undo();
redraw();
isUndo = false;
}
} catch (e) {}
tempPath.remove();
redraw();
saveSettings();
}
ok.onClick = okClick;
function okClick() {
if (isPreview.value && isUndo) undo();
start();
isUndo = false;
win.close();
}
function previewStart() {
try {
if (isPreview.value) {
if (isUndo) undo();
else isUndo = true;
start();
redraw();
} else if (isUndo) {
undo();
redraw();
isUndo = false;
}
} catch (e) {}
}
function start() {
var counter = strToNum(numVal.text, CFG.start),
diameter = strToNum(diaVal.text, CFG.diameter),
leftMargin = strToNum(leftVal.text, CFG.left),
topMargin = strToNum(topVal.text, CFG.top),
fontSize = strToNum(fontVal.text, CFG.font),
markerColor = setMarkerColor(),
markerGroup, numGroup;
if (fontSize <= 0) fontSize = CFG.font;
if (fontSize > 1296 * CFG.sf) fontSize = 1296 * CFG.sf;
if (diameter <= 0) diameter = CFG.diameter;
// Convert value to document units
diameter = convertUnits(diameter, CFG.units, 'px') / CFG.sf;
leftMargin = convertUnits(leftMargin, CFG.units, 'px') / CFG.sf;
topMargin = convertUnits(topMargin, CFG.units, 'px') / CFG.sf;
tempPath = doc.activeLayer.pathItems.add();
tempPath.name = 'Temp_Path';
// Add new groups for numbers and markers
markerGroup = addGroup(CFG.markerName);
numGroup = addGroup(CFG.numName);
for (var j = 0, pLen = selPoints.length; j < pLen; j++) {
var currPoint = selPoints[j];
drawMarker(currPoint, diameter, markerColor, markerGroup);
drawNumber(currPoint, fontSize / CFG.sf, counter, topMargin, leftMargin, numGroup);
counter++;
}
}
win.center();
win.show();
function saveSettings() {
if(!Folder(SETTINGS.folder).exists) Folder(SETTINGS.folder).create();
var $file = new File(SETTINGS.folder + SETTINGS.name);
$file.encoding = 'UTF-8';
$file.open('w');
var pref = {};
pref.counter = numVal.text;
pref.diameter = diaVal.text;
pref.left = leftVal.text;
pref.top = topVal.text;
pref.font = fontVal.text;
pref.preview = isPreview.value;
var data = pref.toSource();
$file.write(data);
$file.close();
}
function loadSettings() {
var $file = File(SETTINGS.folder + SETTINGS.name);
if ($file.exists) {
try {
$file.encoding = 'UTF-8';
$file.open('r');
var json = $file.readln();
var pref = new Function('return ' + json)();
$file.close();
if (typeof pref != 'undefined') {
numVal.text = pref.counter;
diaVal.text = pref.diameter;
leftVal.text = pref.left;
topVal.text = pref.top;
fontVal.text = pref.font;
isPreview.value = (pref.preview == true && CFG.aiVers !== '24.3');
}
} catch (e) {}
}
}
function shiftInputNumValue(item, min, max) {
item.addEventListener('keydown', function (kd) {
var step = kd.shiftKey ? step = 10 : step = 1;
switch (kd.keyName) {
case 'Up':
this.text = String(1 * this.text + step);
if (max && 1 * this.text > max) this.text = max;
kd.preventDefault();
previewStart();
break;
case 'Down':
this.text = String(1 * this.text - step);
if (min && 1 * this.text < min) this.text = min;
kd.preventDefault();
previewStart();
break;
}
});
}
}
// Set color for marker. Default Black
function setMarkerColor() {
var newColor;
if (activeDocument.documentColorSpace === DocumentColorSpace.RGB) {
newColor = new RGBColor();
newColor.red = 0;
newColor.green = 0;
newColor.blue = 0;
} else {
newColor = new CMYKColor();
newColor.cyan = 0;
newColor.magenta = 0;
newColor.yellow = 0;
newColor.black = 100;
}
return newColor;
}
function getPaths(item, arr) {
for (var i = 0, len = item.length; i < len; i++) {
var currItem = item[i];
try {
switch (currItem.typename) {
case 'GroupItem':
getPaths(currItem.pageItems, arr);
break;
case 'PathItem':
arr.push(currItem);
break;
case 'CompoundPathItem':
getPaths(currItem.pathItems, arr);
break;
default:
currItem.selected = false;
break;
}
} catch (e) {}
}
}
function getPoints(paths, arr) {
for (var i = 0, len = paths.length; i < len; i++) {
if (paths[i].pathPoints.length > 1) {
var points = paths[i].pathPoints;
for (var j = 0, pLen = points.length; j < pLen; j++) {
if (points[j].selected == PathPointSelection.ANCHORPOINT) arr.push(points[j]);
}
}
}
}
function addGroup(name) {
var lblGroup;
try {
lblGroup = activeDocument.groupItems.getByName(name);
} catch (e) {
lblGroup = activeDocument.activeLayer.groupItems.add();
lblGroup.name = name;
}
return lblGroup;
}
// Convert string to number
function strToNum(str, def) {
if (arguments.length == 1 || def == undefined) def = 1;
str = str.replace(/,/g, '.').replace(/[^\d.-]/g, '');
str = str.split('.');
str = str[0] ? str[0] + '.' + str.slice(1).join('') : '';
str = str.substr(0, 1) + str.substr(1).replace(/-/g, '');
if (isNaN(str) || !str.length) return parseFloat(def);
else return parseFloat(str);
}
// Get active document ruler units
function getUnits() {
if (!documents.length) return '';
var key = activeDocument.rulerUnits.toString().replace('RulerUnits.', '');
switch (key) {
case 'Pixels': return 'px';
case 'Points': return 'pt';
case 'Picas': return 'pc';
case 'Inches': return 'in';
case 'Millimeters': return 'mm';
case 'Centimeters': return 'cm';
// Added in CC 2023 v27.1.1
case 'Meters': return 'm';
case 'Feet': return 'ft';
case 'FeetInches': return 'ft';
case 'Yards': return 'yd';
// Parse new units in CC 2020-2023 if a document is saved
case 'Unknown':
var xmp = activeDocument.XMPString;
if (/stDim:unit/i.test(xmp)) {
var units = /<stDim:unit>(.*?)<\/stDim:unit>/g.exec(xmp)[1];
if (units == 'Meters') return 'm';
if (units == 'Feet') return 'ft';
if (units == 'FeetInches') return 'ft';
if (units == 'Yards') return 'yd';
return 'px';
}
break;
default: return 'px';
}
}
// Convert units of measurement
function convertUnits(value, currUnits, newUnits) {
return UnitValue(value, currUnits).as(newUnits);
}
function drawMarker(point, diameter, color, container) {
var marker = activeDocument.pathItems.ellipse(
point.anchor[1] + diameter * 0.5, // Top
point.anchor[0] - diameter * 0.5, // Left
diameter, // Width
diameter, // Height
false, // Reversed
true); // Inscribed
marker.stroked = false;
marker.fillColor = color;
marker.move(container, ElementPlacement.PLACEATBEGINNING);
}
function drawNumber(point, font, num, top, left, container) {
var numStr = activeDocument.textFrames.add();
numStr.textRange.characterAttributes.size = font;
numStr.contents = num;
numStr.top = point.anchor[1] + top;
numStr.left = point.anchor[0] + left;
numStr.move(container, ElementPlacement.PLACEATBEGINNING);
}
// Open link in browser
function openURL(url) {
var html = new File(Folder.temp.absoluteURI + '/aisLink.html');
html.open('w');
var htmlBody = '<html><head><META HTTP-EQUIV=Refresh CONTENT="0; URL=' + url + '"></head><body> <p></body></html>';
html.write(htmlBody);
html.close();
html.execute();
}
try {
main();
} catch (e) {}
