Redraw Path with Equal Distanced Points

//@target illustrator

/*
  Equal Distance Points Generator
  Version: 4.1
  Last Updated: 2025-04-04 19:13:15
  Author: grasycho

  This script redraws selected paths with evenly spaced points
  while preserving the original path structure (straight lines stay straight).
*/

// Main function - entry point of script
function main() {
    if (!app.documents.length) {
        alert("Please open a document first.");
        return;
    }

    // Process paths
    processSelectedPaths();
}

// Process selected paths
function processSelectedPaths() {
    var doc = app.activeDocument;
    var selection = doc.selection;

    if (!selection.length) {
        alert("Please select at least one path.");
        return;
    }

    // Get options from user
    var options = getUserOptions();
    if (!options) return; // User cancelled

    var targetLayer;
    if (options.previewOnly) {
        // Create a preview layer
        targetLayer = doc.layers.add();
        targetLayer.name = "PREVIEW - Equal Points";
    } else {
        targetLayer = doc.activeLayer;
    }

    // Process each path
    var processedCount = 0;
    for (var i = 0; i < selection.length; i++) {
        if (selection[i].typename === "PathItem") {
            var path = selection[i];

            // Create a new path
            var newPath = targetLayer.pathItems.add();
            newPath.stroked = path.stroked;
            newPath.strokeWidth = path.strokeWidth;
            newPath.strokeColor = path.strokeColor;
            newPath.filled = path.filled;
            newPath.fillColor = path.fillColor;
            newPath.closed = path.closed;

            // Make preview paths red for visibility
            if (options.previewOnly) {
                var redColor = new RGBColor();
                redColor.red = 255;
                redColor.green = 0;
                redColor.blue = 0;
                newPath.strokeColor = redColor;
            }

            // Extract path structure
            var pathStructure = extractPathStructure(path);

            // Redraw with equal spacing while preserving structure
            if (redrawWithEqualSpacing(path, newPath, pathStructure, options.numPoints, options.handleLength)) {
                processedCount++;

                // If not preview, remove the original
                if (!options.previewOnly) {
                    path.remove();
                }
            } else {
                // If failed, remove the new path
                newPath.remove();
            }
        }
    }

    if (processedCount === 0) {
        alert("No paths were processed. Please check your selection.");
        if (options.previewOnly && targetLayer.pageItems.length === 0) {
            targetLayer.remove();
        }
    } else {
        if (options.previewOnly) {
            alert("Preview created with " + processedCount + " paths.\nOriginal paths are unchanged.");
        } else {
            alert("Successfully processed " + processedCount + " paths.");
        }
    }
}

// Get options from user

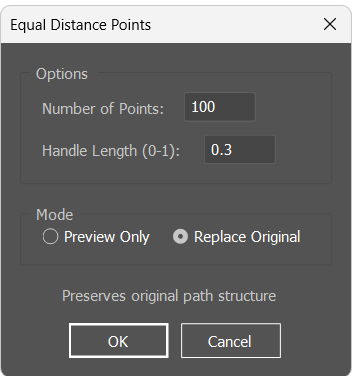

function getUserOptions() {
    var dialog = new Window("dialog", "Equal Distance Points");
    dialog.alignChildren = "fill";

    // Options panel
    var optionsPanel = dialog.add("panel", undefined, "Options");
    optionsPanel.orientation = "column";
    optionsPanel.alignChildren = "left";
    optionsPanel.margins = 15;

    // Number of points
    var pointsGroup = optionsPanel.add("group");
    pointsGroup.add("statictext", undefined, "Number of Points:");
    var pointsInput = pointsGroup.add("edittext", undefined, "100");
    pointsInput.characters = 5;

    // Handle length
    var handleGroup = optionsPanel.add("group");
    handleGroup.add("statictext", undefined, "Handle Length (0-1):");
    var handleInput = handleGroup.add("edittext", undefined, "0.3");
    handleInput.characters = 5;

    // Mode selection
    var modePanel = dialog.add("panel", undefined, "Mode");
    modePanel.orientation = "row";
    modePanel.alignChildren = "center";

    var previewRadio = modePanel.add("radiobutton", undefined, "Preview Only");
    var replaceRadio = modePanel.add("radiobutton", undefined, "Replace Original");
    replaceRadio.value = true; // Default

    // Info text
    var infoText = dialog.add("statictext", undefined, "Preserves original path structure");
    infoText.alignment = "center";

    // Buttons
    var buttonGroup = dialog.add("group");
    buttonGroup.alignment = "center";
    var okButton = buttonGroup.add("button", undefined, "OK", {name: "ok"});
    var cancelButton = buttonGroup.add("button", undefined, "Cancel", {name: "cancel"});

    // Show dialog
    if (dialog.show() !== 1) return null;

    // Return options
    return {
        numPoints: parseInt(pointsInput.text, 10) || 100,
        handleLength: parseFloat(handleInput.text) || 0.3,
        previewOnly: previewRadio.value
    };
}

// Extract path structure - identify corners, straight lines, and curved segments
function extractPathStructure(path) {
    var points = path.pathPoints;
    var numPoints = points.length;
    var structure = {
        corners: [],              // Indices of corner points
        straightSegments: [],     // Pairs of indices representing straight segments
        curvedSegments: [],       // Pairs of indices representing curved segments
        segments: [],             // All segments with metadata
        pointTypes: []            // Type of each point (CORNER, SMOOTH, etc.)
    };

    // First, identify all corners and point types
    for (var i = 0; i < numPoints; i++) {
        var point = points[i];
        structure.pointTypes[i] = point.pointType;

        if (point.pointType === PointType.CORNER) {
            structure.corners.push(i);
        }
    }

    // Function to check if handle is effectively at the anchor
    function isHandleAtAnchor(anchor, handle) {
        var dx = handle[0] - anchor[0];
        var dy = handle[1] - anchor[1];
        return Math.sqrt(dx*dx + dy*dy) < 0.1; // Small threshold
    }

    // Function to check if segment is a straight line
    function isSegmentStraightLine(p1, p2) {
        // Check if handles are collinear (or very close to it)
        var a = p1.anchor;
        var b = p1.rightDirection;
        var c = p2.leftDirection;
        var d = p2.anchor;

        // If both handles are at the anchors, it's a straight line
        if (isHandleAtAnchor(a, b) && isHandleAtAnchor(d, c)) {
            return true;
        }

        // Otherwise check if points are collinear
        var v1x = b[0] - a[0];
        var v1y = b[1] - a[1];
        var v2x = d[0] - a[0];
        var v2y = d[1] - a[1];

        // Cross product near zero means collinear
        var cross = Math.abs(v1x * v2y - v1y * v2x);
        var len1 = Math.sqrt(v1x * v1x + v1y * v1y);
        var len2 = Math.sqrt(v2x * v2x + v2y * v2y);

        if (len1 > 0 && len2 > 0 && cross / (len1 * len2) < 0.0001) {
            // Also check second part
            v1x = c[0] - a[0];
            v1y = c[1] - a[1];
            cross = Math.abs(v1x * v2y - v1y * v2x);
            len1 = Math.sqrt(v1x * v1x + v1y * v1y);

            return len1 > 0 && cross / (len1 * len2) < 0.0001;
        }

        return false;
    }

    // Analyze each segment
    for (var i = 0; i < numPoints; i++) {
        var nextIdx = (i + 1) % numPoints;

        // Skip if we're at the last point of an open path
        if (!path.closed && i === numPoints - 1) continue;

        var p1 = points[i];
        var p2 = points[nextIdx];

        var isStraight = isSegmentStraightLine(p1, p2);

        var segment = {
            startIdx: i,
            endIdx: nextIdx,
            isStraight: isStraight,
            startAnchor: p1.anchor,
            endAnchor: p2.anchor,
            startRightDir: p1.rightDirection,
            endLeftDir: p2.leftDirection,
            startType: p1.pointType,
            endType: p2.pointType,
            // Calculate length
            length: isStraight ?
                getDistance(p1.anchor, p2.anchor) :
                getBezierLength(p1.anchor, p1.rightDirection, p2.leftDirection, p2.anchor)
        };

        structure.segments.push(segment);

        if (isStraight) {
            structure.straightSegments.push([i, nextIdx]);
        } else {
            structure.curvedSegments.push([i, nextIdx]);
        }
    }

    // Calculate total path length
    var totalLength = 0;
    for (var i = 0; i < structure.segments.length; i++) {
        totalLength += structure.segments[i].length;
    }
    structure.totalLength = totalLength;

    return structure;
}

// Redraw path with equal spacing while preserving original structure
function redrawWithEqualSpacing(srcPath, destPath, pathStructure, numPoints, handleLengthFactor) {
    // Clear any default points
    while (destPath.pathPoints.length > 0) {
        destPath.pathPoints[0].remove();
    }

    var totalLength = pathStructure.totalLength;
    var segments = pathStructure.segments;

    if (totalLength <= 0 || segments.length === 0) {
        return false;
    }

    // Calculate point spacing
    var spacing;
    var pointsToCreate;

    if (srcPath.closed) {
        // For closed paths, distribute points evenly around the entire path
        pointsToCreate = numPoints;
        spacing = totalLength / numPoints;
    } else {
        // For open paths, distribute points from start to end
        pointsToCreate = numPoints;
        spacing = totalLength / (numPoints - 1);
    }

    // Create points
    var currentDistance = 0;
    var segmentIndex = 0;
    var segmentOffset = 0;

    for (var i = 0; i < pointsToCreate; i++) {
        var targetDistance;

        if (srcPath.closed) {
            // For closed paths, distribute evenly around the path
            targetDistance = (i * spacing) % totalLength;
        } else {
            // For open paths, distribute from start to end
            targetDistance = Math.min(i * spacing, totalLength);
        }

        // Find the segment containing this distance
        while (segmentIndex < segments.length &&
               (currentDistance + segments[segmentIndex].length) < targetDistance) {
            currentDistance += segments[segmentIndex].length;
            segmentIndex = (segmentIndex + 1) % segments.length;
        }

        // Current segment
        var segment = segments[segmentIndex];

        // Relative distance within this segment (0-1)
        var t = (targetDistance - currentDistance) / segment.length;

        // Create a new point
        var newPoint = destPath.pathPoints.add();

        if (segment.isStraight) {
            // Linear interpolation for straight segments
            var x = segment.startAnchor[0] + t * (segment.endAnchor[0] - segment.startAnchor[0]);
            var y = segment.startAnchor[1] + t * (segment.endAnchor[1] - segment.startAnchor[1]);

            newPoint.anchor = [x, y];

            // For straight segments, make the handles also lie on the line
            var dx = segment.endAnchor[0] - segment.startAnchor[0];
            var dy = segment.endAnchor[1] - segment.startAnchor[1];
            var dist = Math.sqrt(dx*dx + dy*dy);

            if (dist > 0) {
                var handleLen = spacing * handleLengthFactor;
                var nx = dx / dist;
                var ny = dy / dist;

                // Align handles with the straight line
                newPoint.leftDirection = [x - nx * handleLen, y - ny * handleLen];
                newPoint.rightDirection = [x + nx * handleLen, y + ny * handleLen];
            } else {
                // Failsafe
                newPoint.leftDirection = newPoint.anchor;
                newPoint.rightDirection = newPoint.anchor;
            }

            // For straight segments, make it a SMOOTH point to ensure straight line
            newPoint.pointType = PointType.SMOOTH;

            // If we're very close to a corner, restore its corner nature
            if ((t < 0.05 && segment.startType === PointType.CORNER) ||
                (t > 0.95 && segment.endType === PointType.CORNER)) {
                newPoint.pointType = PointType.CORNER;
                // For corners, make handles coincide with anchor
                newPoint.leftDirection = newPoint.anchor;
                newPoint.rightDirection = newPoint.anchor;
            }
        } else {
            // Bezier interpolation for curved segments
            var point = bezierAtParameter(
                segment.startAnchor, segment.startRightDir,
                segment.endLeftDir, segment.endAnchor, t
            );

            var tangent = bezierTangentAtParameter(
                segment.startAnchor, segment.startRightDir,
                segment.endLeftDir, segment.endAnchor, t
            );

            newPoint.anchor = [point.x, point.y];

            // Calculate handle length based on spacing and factor
            var handleLen = spacing * handleLengthFactor;
            var tanLen = Math.sqrt(tangent.x*tangent.x + tangent.y*tangent.y);

            if (tanLen > 0) {
                var nx = tangent.x / tanLen;
                var ny = tangent.y / tanLen;

                newPoint.leftDirection = [point.x - nx * handleLen, point.y - ny * handleLen];
                newPoint.rightDirection = [point.x + nx * handleLen, point.y + ny * handleLen];
            } else {
                // Failsafe
                newPoint.leftDirection = newPoint.anchor;
                newPoint.rightDirection = newPoint.anchor;
            }

            // For curved segments, make it a SMOOTH point for smooth curves
            newPoint.pointType = PointType.SMOOTH;
        }
    }

    return true;
}

// Calculate point at parameter t along a Bezier curve
function bezierAtParameter(p0, p1, p2, p3, t) {
    var u = 1 - t;
    var tt = t * t;
    var uu = u * u;
    var uuu = uu * u;
    var ttt = tt * t;

    var x = uuu * p0[0] +
            3 * uu * t * p1[0] +
            3 * u * tt * p2[0] +
            ttt * p3[0];

    var y = uuu * p0[1] +
            3 * uu * t * p1[1] +
            3 * u * tt * p2[1] +
            ttt * p3[1];

    return {x: x, y: y};
}

// Calculate tangent at parameter t along a Bezier curve
function bezierTangentAtParameter(p0, p1, p2, p3, t) {
    var u = 1 - t;

    var x = 3 * u * u * (p1[0] - p0[0]) +
            6 * u * t * (p2[0] - p1[0]) +
            3 * t * t * (p3[0] - p2[0]);

    var y = 3 * u * u * (p1[1] - p0[1]) +
            6 * u * t * (p2[1] - p1[1]) +
            3 * t * t * (p3[1] - p2[1]);

    return {x: x, y: y};
}

// Get distance between two points
function getDistance(p1, p2) {
    var dx = p2[0] - p1[0];
    var dy = p2[1] - p1[1];
    return Math.sqrt(dx*dx + dy*dy);
}

// Get approximate length of a Bezier curve
function getBezierLength(p0, p1, p2, p3) {
    var steps = 30; // Number of steps for approximation
    var length = 0;
    var prevX = p0[0];
    var prevY = p0[1];

    for (var i = 1; i <= steps; i++) {
        var t = i / steps;
        var point = bezierAtParameter(p0, p1, p2, p3, t);

        var dx = point.x - prevX;
        var dy = point.y - prevY;
        length += Math.sqrt(dx*dx + dy*dy);

        prevX = point.x;
        prevY = point.y;
    }

    return length;
}

// Run the script
main();
